Description of Product

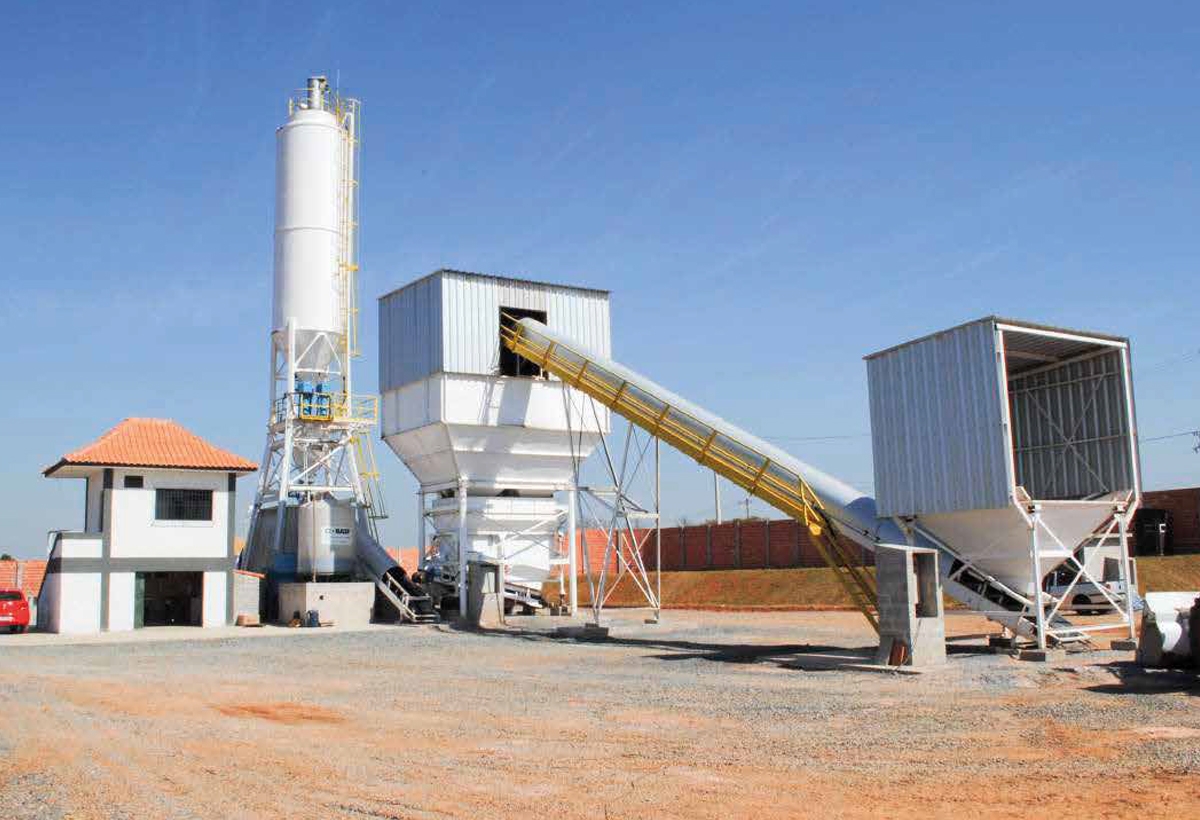

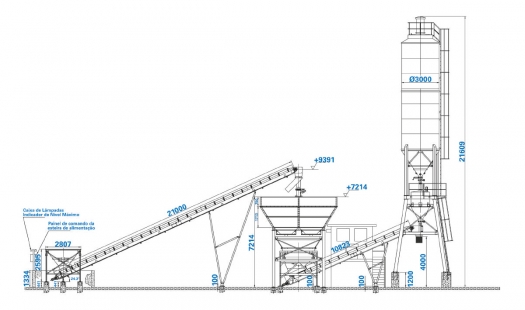

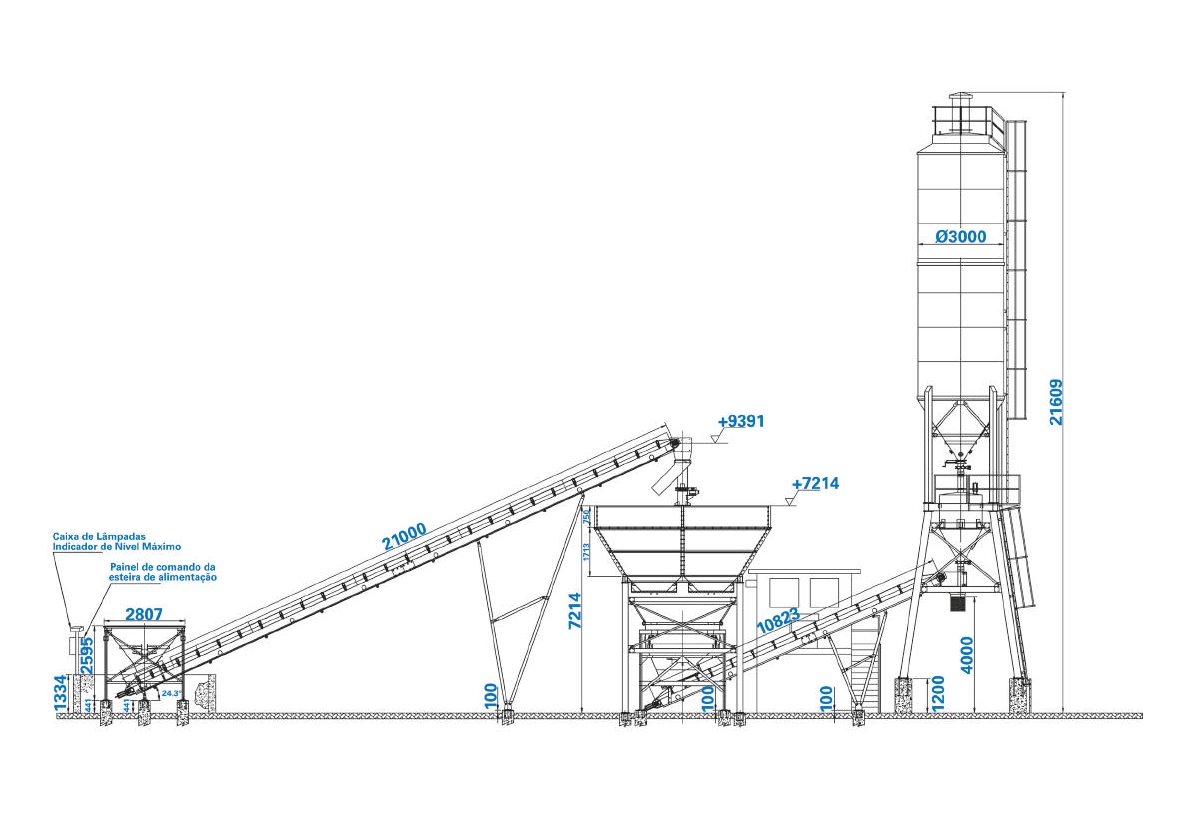

GMP-1/4: The evolution of Towgo

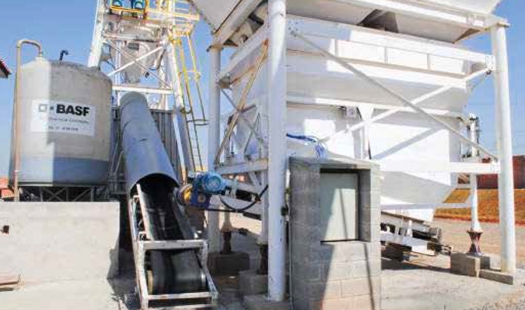

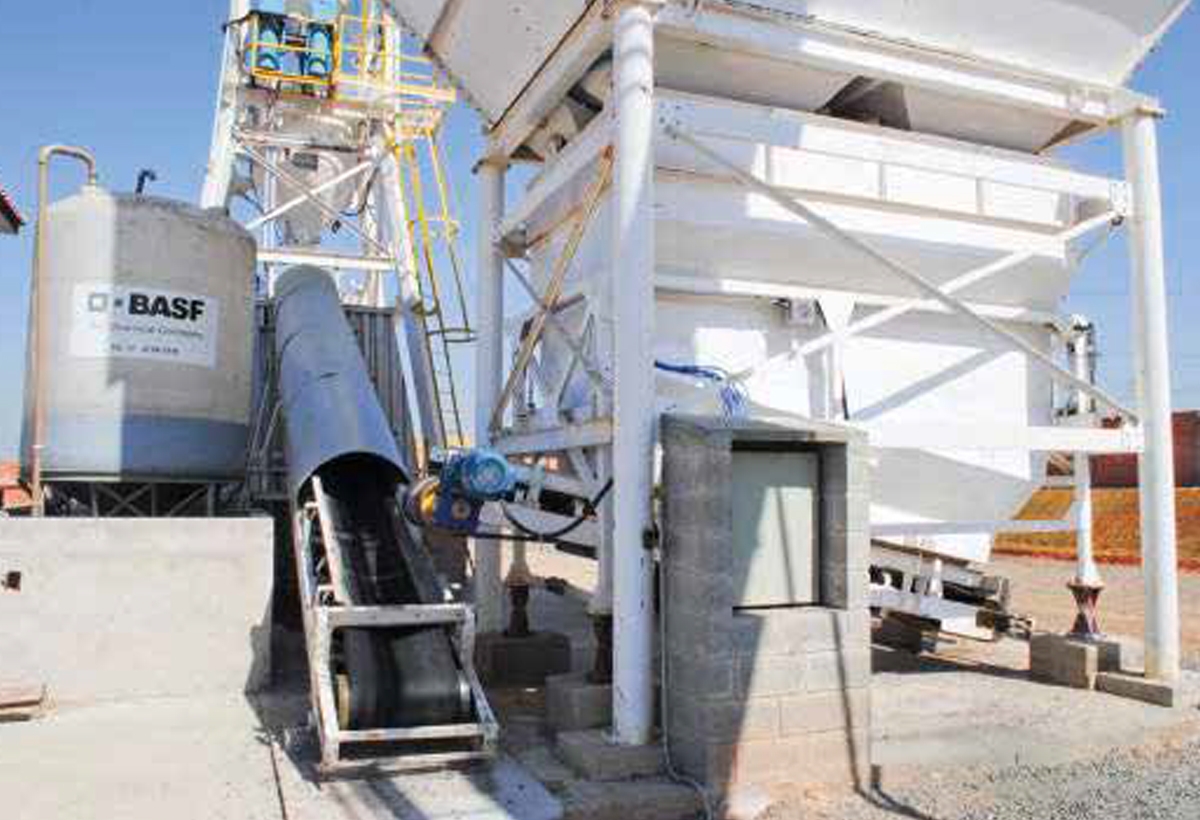

With a unique feeding system consisting of a supply hopper, a belt conveyor, and a rotary chute, the GMP-1/4 increases concrete productivity. The rotary chute of this plant is responsible for diverting the material to the correct storage box.
With a high level of modularity, this model allows for the implementation of a storage box with a total volume of 40 to 80 cubic meters.
For customers who are starting in the concrete industry, the initial investment in Towgo allows them to upgrade to this model by only investing in the Feeding System and the Storage Box.
Technical Specification
Model
GMP-1/4
Dosage/Cycle
8,00 / 10,00 m3
Nominal Production / Hour
60 / 80 m3
Weighing System
Cumulative
Storage Capacity
60 / 80 m3
Cement Dosing System
Cement Scale
Aggregate QTY
4
Additive Dosing
Admixture Panel with 1, 2 or 3 Tanks
Water Dosing
Water Scale
Storage Volume per Box
15 / 20 m3
Operation
Manual ou Automated
